Dipercaya sejak tahun 1972, Mitsubishi COLT T120SS terus melakukan perubahan guna memenuhi kebutuhan kendaraan komersial di Indonesia.
Setiap kendaraan T120SS dilengkapi dengan garansi 2 tahun atau 50.000km (mana yang dicapai terlebih dahulu). Ketentuan Garansi Kendaraan Mitsubishi dan Batasan-batasannya dapat dilihat di Service Booklet kendaraan Anda.
T120SS
1.5 L STANDARD PICK UP
1.5 L STANDARD PICK UP
OTR Jabodetabek
Rp108.500.000T120SS
1.5 L STANDARD PICK UP FLATBED
1.5 L STANDARD PICK UP FLATBED
OTR Jabodetabek
Rp109.000.000T120SS
1.5 L 3 WAY WIDE DECK
1.5 L 3 WAY WIDE DECK
OTR Jabodetabek
Rp 111.000.000T120SS
BUS CHASSIS
BUS CHASSIS
OTR Jabodetabek
Rp 113.500.000FITUR KENDARAAN

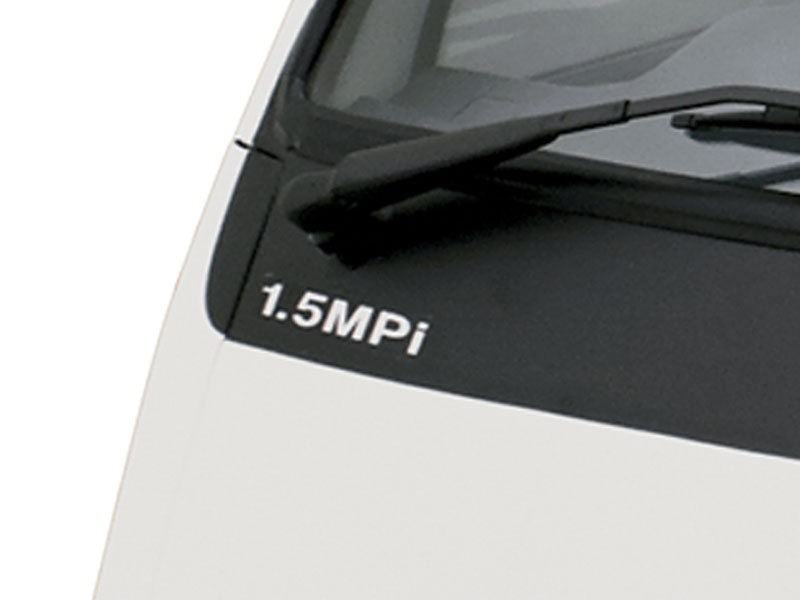

1.5 MPI

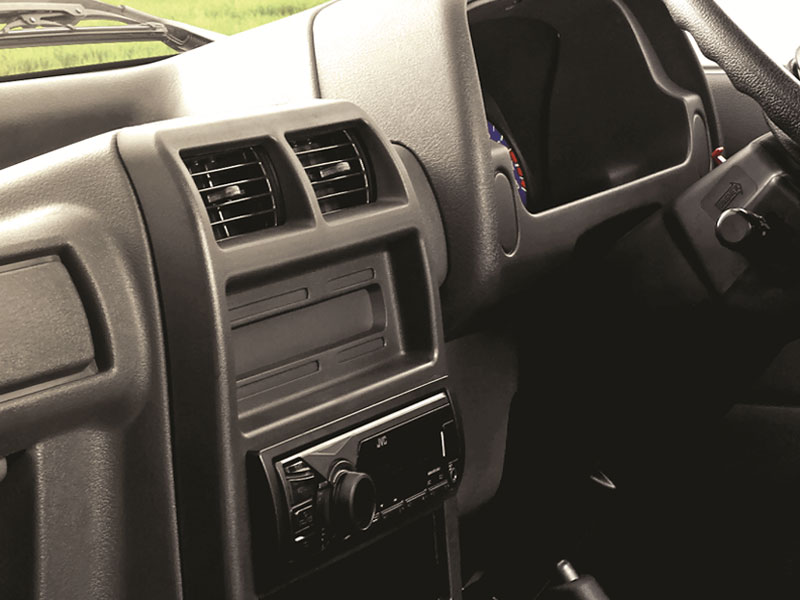

COMPLETED WITH AUDIO SYSTEM
BLUE MAGNIFICENT COLOR

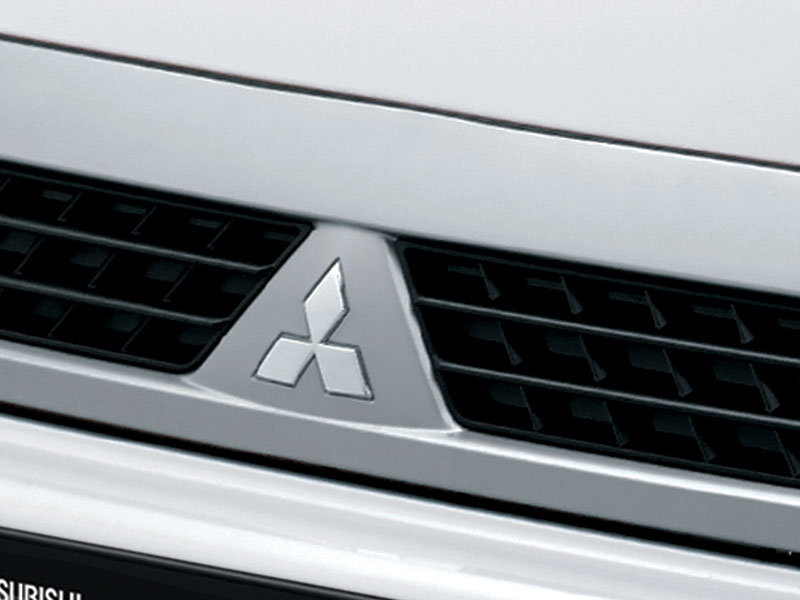

NEW GRILL
SPESIFIKASI KENDARAAN
| Item | 1.5 L STANDAR & FLAT DECK PU | 1.5 L 3 WAY WIDE DECK | BUS CHASIS |
|---|---|---|---|
| Overall Length mm |
3720 | 3940 | 3675 |
| Width mm |
1560 | 1680 | 1560 |
| Height mm |
1825 | 1795 | 1835 |
| Wheel Base mm |
1970 | 1970 | 1970 |
| Min. Ground Clearance mm |
180 | 180 | 180 |
| Item | 1.5 L STANDAR & FLAT DECK PU | 1.5 L 3 WAY WIDE DECK | BUS CHASSIS |
|---|---|---|---|
| Bed Interior Length mm |
2200 | 2335 | - |
| Bed Interior Width mm |
1480 | 1600 | - |
| Bed Interior Height mm |
300 | 350 | - |
| Curb Weight kg |
790 | 940 | 800 |
| Gross Vehicle Weight (GVW) kg |
1760 | 1760 | 1760 |
| Item | 1.5 L STANDAR & FLAT DECK PU | 1.5 L 3 WAY WIDE DECK | BUS CHASIS |
|---|---|---|---|
| Min. Turning Radius m |
4.2 | 4.2 | 4.2 |
| Item | 1.5 L STANDAR & FLAT DECK PU | 1.5 L 3 WAY WIDE DECK | BUS CHASIS |
|---|---|---|---|
| ENGINE TYPE
|
4G15 - 12 valve (4 Cyl, 4 Stroke) | 4G15 - 12 valve (4 Cyl, 4 Stroke) | 4G15 - 12 valve (4 Cyl, 4 Stroke) |
| Displacement cc |
1468 | 1468 | 1468 |
| Maximum Power PS(kW) / rpm |
86 / 5750 | 86/ 5750 | 86 / 5750 |
| Maximum Torque Kg.m(N.m) / rpm |
12.3 / 3750 | 12.3 / 3750 | 12.3 / 3750 |
| Bore x Stroke mm |
75,5 x 82,0 | 75,5 x 82,0 | 75,5 x 82,0 |
| Fuel Supply
|
Multi Point Injection | Multi Point Injection | Multi Point Injection |
| Item | 1.5 L STANDAR & FLAT DECK PU | 1.5 L 3 WAY WIDE DECK | BUS CHASIS |
|---|---|---|---|
| Type
|
5 speed forth, 1 speed back | 5 speed forth, 1 speed back | 5 speed forth, 1 speed back |
| Gear Ratio Gear 1 |
3.579 | 3.579 | 3,579 |
| Gear Ratio Gear 2 |
2.094 | 2.094 | 2,094 |
| Gear Ratio Gear 3 |
1,530 | 1,530 | 1,530 |
| Gear Ratio Gear 4 |
1,000 | 1,000 | 1,000 |
| Gear Ratio Gear 5 |
0.855 | 0.855 | 0.855 |
| Gear Ratio Back Gear |
3.727 | 3.727 | 3,727 |
| Final Gear Ratio
|
4.875 | 4.875 | 4,875 |
| Item | 1.5 L STANDAR & FLAT DECK PU | BUS CHASIS | |
|---|---|---|---|
| Steering System
|
Rack & Pinion | Rack & Pinion | Rack & Pinion |
| Brake Front |
Ventilated Disc | Ventilated Disc | Ventilated Disc |
| Brake Rear |
Drum | Drum | Drum |
| Suspension Front |
Mac Pherson Strut Coil Independent | Mac Pherson Strut Coil Independent | MacPherson Strut Coil Independent |
| Suspension Rear |
Semi Eliptic Leaf Spring | Semi Eliptic Leaf Spring | Semi Eliptic Leaf Spring |
| Tank Capacity
|
42 | 42 | 42 |
| Tire Size Front/Rear |
165/R13-8PR | 165/R13-8PR | 165/R13-8PR |
| Item | 1.5 L STANDAR & FLAT DECK PU | 1.5 L 3 WAY WIDE DECK | BUS CHASIS |
|---|---|---|---|
| Produced at
|
PT Krama Yudha Ratu Motor PT Mitsubishi Krama Yudha Motors and Manufacturing Jakarta, Indonesia |
PT Krama Yudha Ratu Motor PT Mitsubishi Krama Yudha Motors and Manufacturing Jakarta, Indonesia |
PT Krama Yudha Ratu Motor PT Mitsubishi Krama Yudha Motors and Manufacturing Jakarta, Indonesia |
